Frequently Asked Questions


  How do I connect the handset ?
  How and where do I mount the handset?
  Do I have to adjust sound IN and OUTPUT levels ?
  What are the technical specifications ?
Please find the Manual in PDF-format (480 kb) here
or in MS Word format (95 kb) here

  How do I connect the handset ?

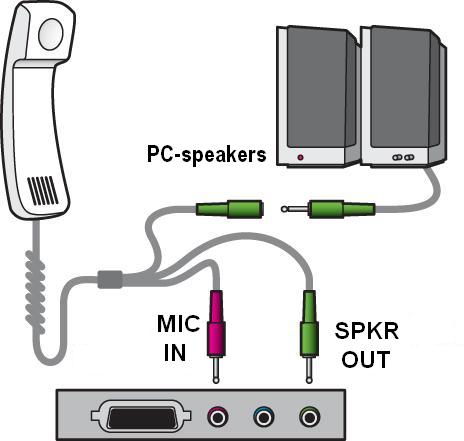

See Diagram : (click to enlarge or print)




How and where do I mount the handset ?

If the front-panel of your monitor is wide enough, we suggest attaching the handset holder on the left front-panel of your monitor. If the front-panel is too narrow you may attach the holder on the side of your monitor.
The cable clamp should be attached on the side towards the top of your monitor to hold the spiral cord conveniently out of your way.

IMPORTANT: Before attaching the holder, clean the mounting area with soap and water, (do NOT use any solvent) and let it dry. Pull off the foil from the adhesive tape and press the holder firmly against the mounting surface. Wait a few hours before hanging up the handset for maximum adhesion.

Flat-Screen:
If you have a Flat-Screen, or if you don't want to attach the handset to the monitor, you can simply place the handset on the desk, and the switch will function perfectly. The handset is designed in such a way, that you do not need a base!



Do I have to adjust sound IN and OUTPUT levels ?

Yes, you may need to adjust your mic-in volume. As the Noise cancelling microphone is very sensitive, we achieved excellent results with most sound cards by setting the mic-in level to only about 70%. Speaker output level of the sound card can be left at MAX. because you have a volume control on the Handset.



What are the technical specifications ?

Microphone Characteristics

Type Acoustic Noise Cancelling,
Electret Condenser
Power Powered by a bias voltage supplied
from sound card
Operating voltage 1.5V – 12 V
3.0V typical
Frequency Range 50 – 14 000 Hz
Output Impedance 2k ohm
Sensitivity -58 dBV
Current drain 0.5 mA max
S/N ratio 56 dB min
Input cord 2.5 m with 3.5 mm stereo plug



Speaker Characteristics

Type Dynamic, 27 mm Mylar Cone
Impedance 32 ohm at 1 kHz
from sound card
Frequency Response 50 – 15 000 Hz
Rated Input Power 100 mW
from sound card
Input cord : 2.5 m with 3.5 mm stereo plug
and parallel 3.5 mm stereo jack
